Hello, I was just about to take a flight from EDDM to EDDB.
I noticed that when selecting the ATG06R RNAV transition, the waypoints (DBxxx) are completely missing. This also happens with the ATG06R RNAV Transition and with the ATG24R and ATG24L STARs.
In additon when choosing the KLF Transition it inputs also the waypoints (DBxxx).
Could you please take a look into that?
Hi,
I have no idea which simulator you use or which add-on you use here, so this is a general answer.

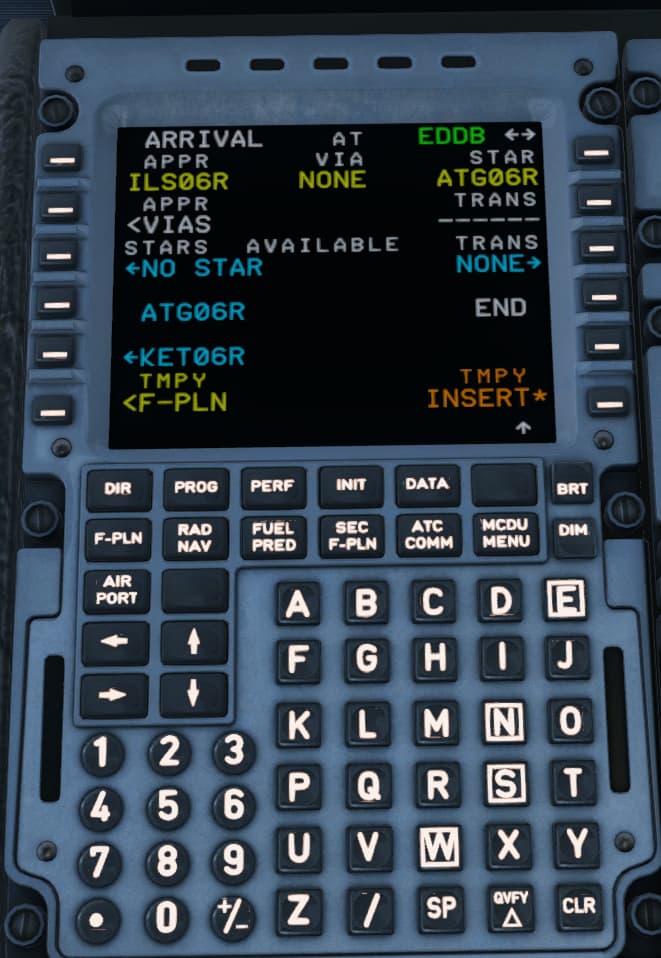

I have tested this in MSFS2024 with the FBW A320, AIRAC 2509 installed:

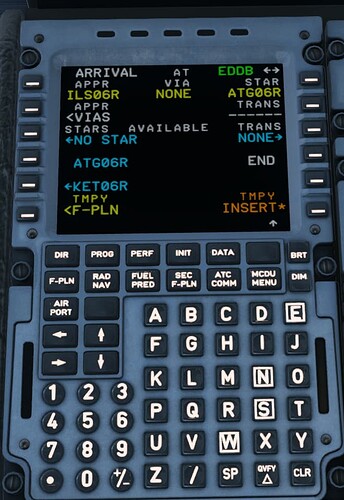

… here from the Inibuilds A320 v2:
… and here from the EFB with AIRAC 2509 installed:
I can´t reproduce your issue. I assume that you made a handling error. Do you select the ATG06R STAR and the ILS06R? I ask because I believe you select the ATGUP approach transition, which " overwrites" the ATG06R.
Again, as you see, the data are all in our datasets and should be available. Due to the lack of details, I have used the MSFS2024, but it should be the same for all other datasets.
Cheers
Richard

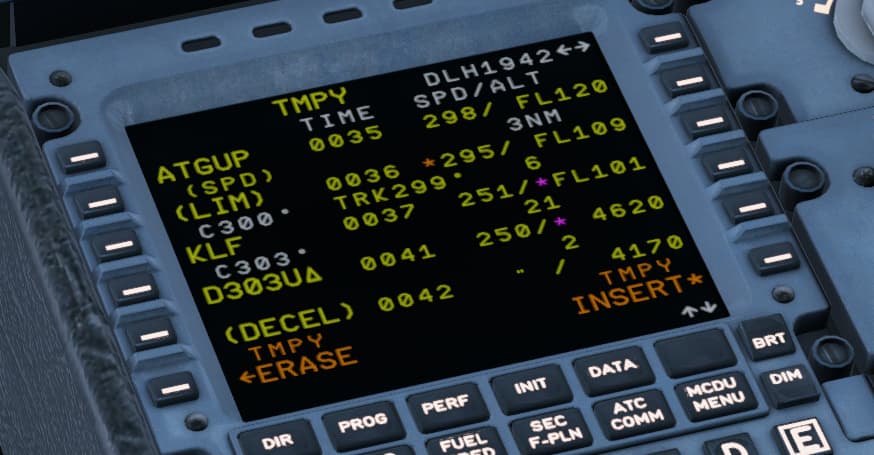

Oh was i was using X-Plane 12 and the Toliss Airbus A20N. I will try your approach now and give your Feedback according to it.
Ah, but it should be the same …
There is no ATGUP STAR transition, only a STAR ATG06R with the DBxxx. When you mean the ATGUP approach transition, this transition doesn´t include any DBxxx waypoint.

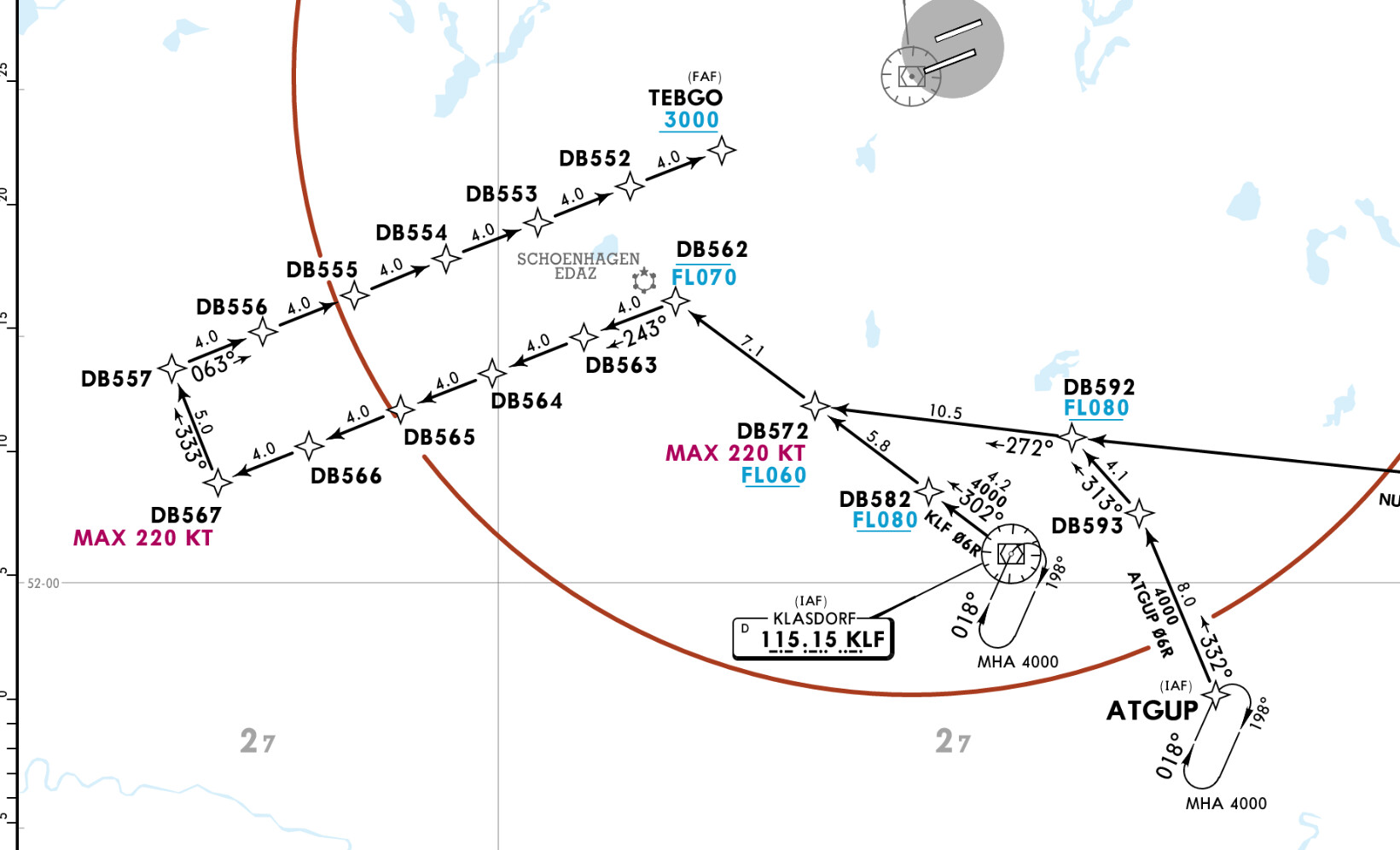

Here the ATGUP06R STAR:

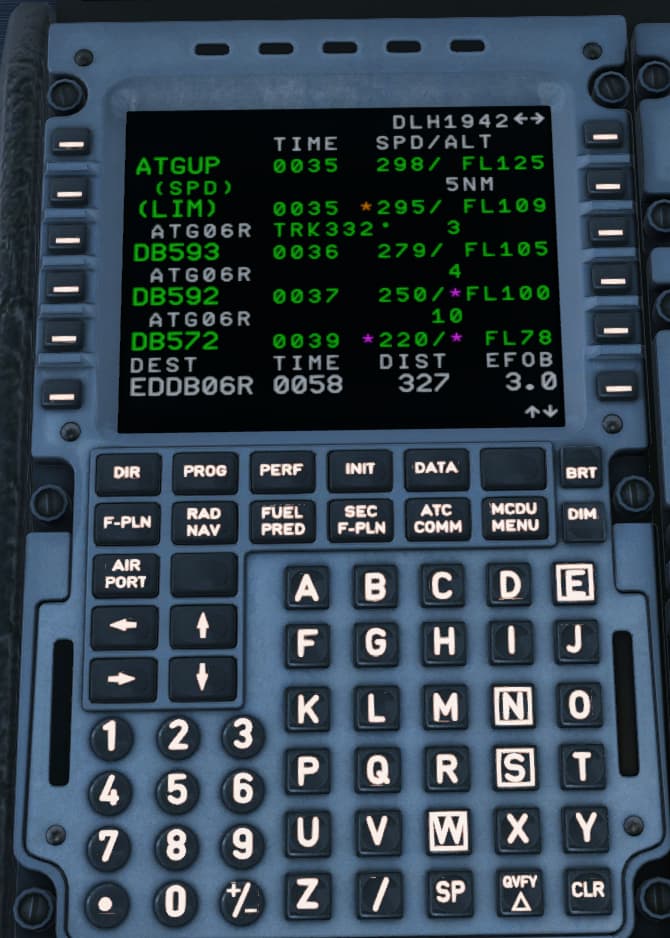

… and here the ILS06R via ATGUP (thats what is showing on your screenshots):
So I assume you mix a STAR with the approach here.
Cheers,
Richard

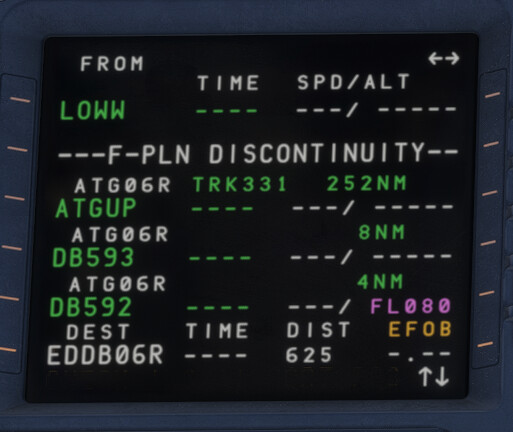

Ok i found my out my Error. I had to deselect the ATGUP VIA.
If it shows up like that in the FMC the Waypoints are included in the Flightplan.
Right, the VIAS are for the approach, but you want to use the STAR and therefore the “missing waypoints”
Good, that is solved! Have fun … and enjoy your day!
Cheers
Richard
