Wrong location of waypoint on SID

[231200]

Hello,
I noticed BI371 on EKBI MIKRO5A departure is not correct,

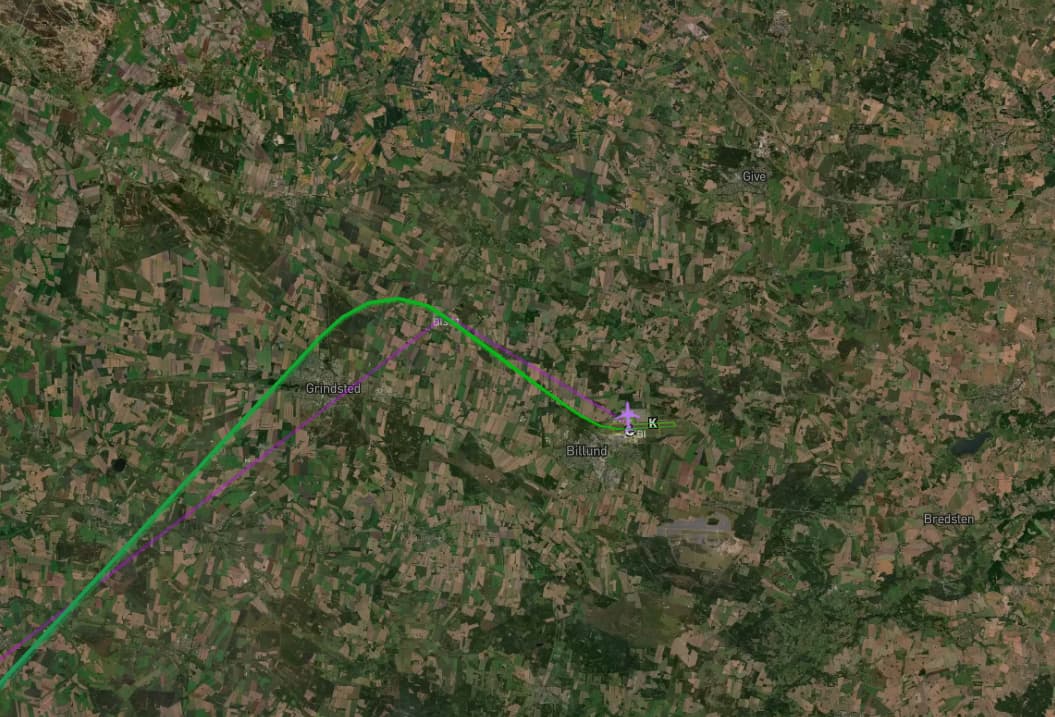

First picture is from Volanta, where I’ve flown in MSFS

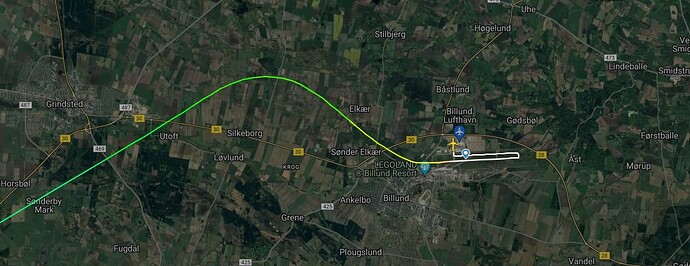

Second Picture is from flightradar24 - BA807
And I think its actually all departures out of EKBI that have waypoint BI371 is affected by this
Can you please check to see if there’s a way to fix this

[srcooke]

If you look at the chart for the SID you will note BI371 is a fly-over waypoint.

The FR24 image clearly shows the flight turning before BI371, maybe vectored by ATC.

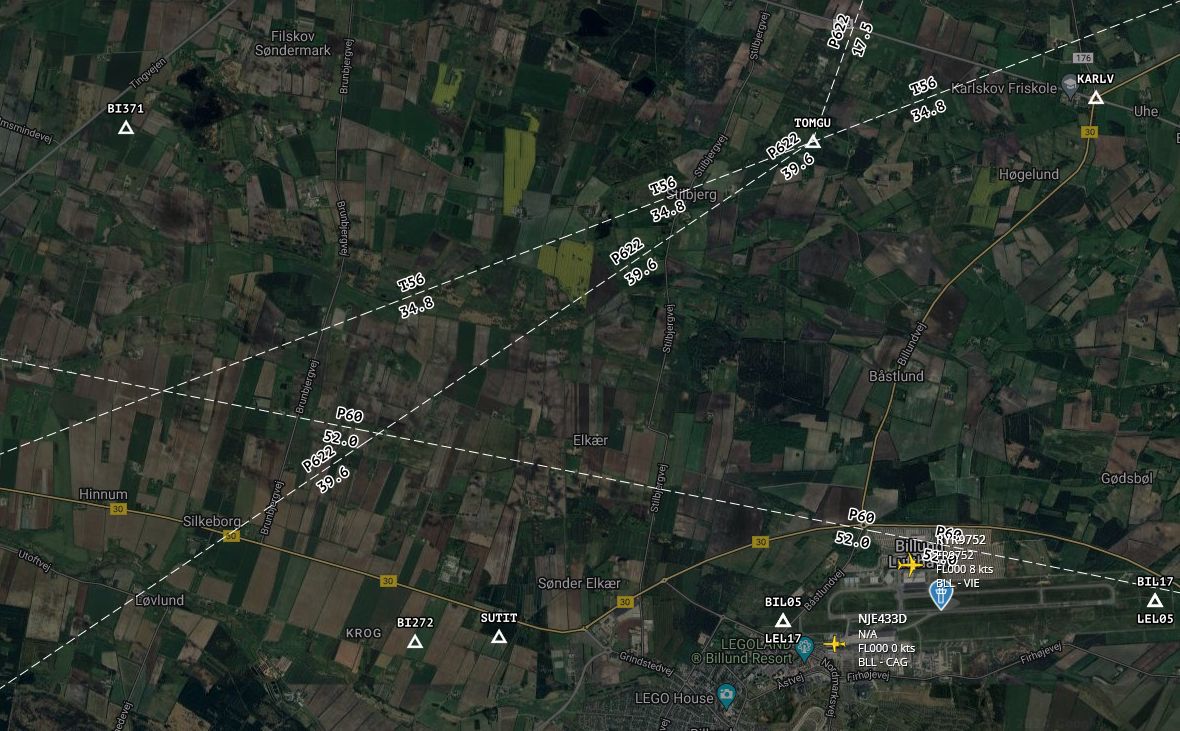

The FR24 overlay can display the waypoint which is further NW of the BA807 track:

[231200]

Yeah could be because IRL they don’t do fly-over at the waypoint.
Or they get a direct right before BI371

[NAVData]

Hi,
Right, it’s coded as fly-over waypoint - also in the AIP. So, the procedure in the sim reflects the real world.

Cheers
Richard

[231200]

Hi Richard,
Yeah I see that now.
Thank you

Best Regards
Martin

[NAVData]

No probs Martin, but anyway thanks for the posting … Also thanks for your support @srcooke

Cheers
Richard
