VNKT KIMTI 2R STAR RF-leg in Fenix incorrect

Navigation Data SID/STAR/APPR
1

Hello there,

I just noticed during my flight to VNKT via the KIMTI 2R arrival that the last RF-leg between KT640 and RATAN is not flown as an RF-leg in the Fenix A320 (MSFS 20204), but as a DF-leg.

The Navigraph charts are correct, but the Fenix procedure is not.

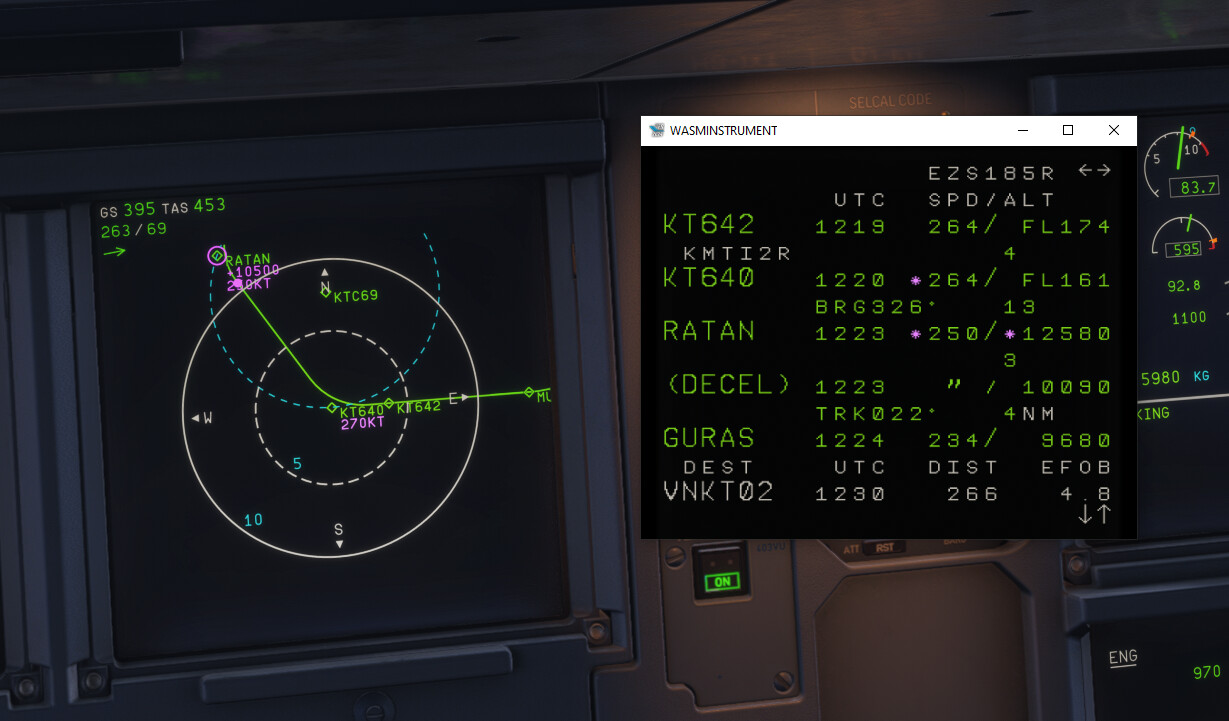

Here is the ND for this arrival (I manually added the RF center KTC69 and the 8NM circle on the ND for reference) :

image1229×721 156 KB

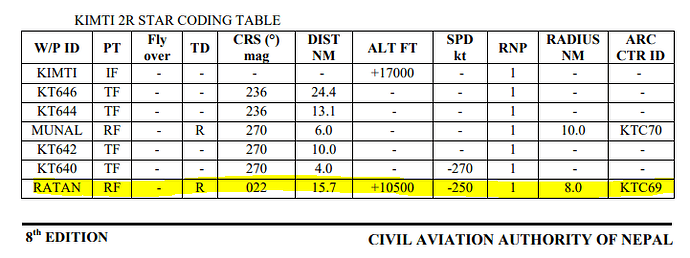

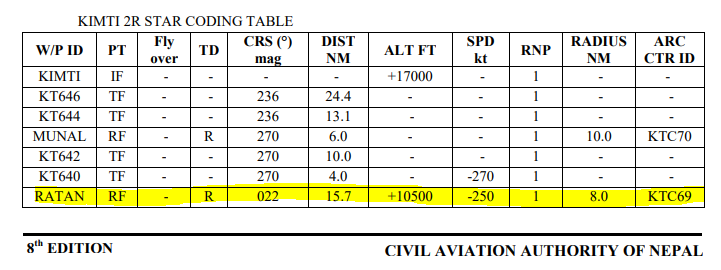

The AIP for reference :

image721×270 30.5 KB

Is it a Fenix issue or a Navigraph data issue ?

Cheers

2

Hi,
I have checked our data and also the Fenix database, and we have precisely the RF leg in both, with KTC69 as the center waypoint. So, this is a Fenix issue. Our charts use the same data source behind them, so when the charts are okay, it is usually an add-on issue.

Please report this to Fenix. Thank you very much.

Cheers,
Richard

3

Thanks Richard for the quick follow-up !

I will forward this to the Fenix team.

:wink:
