NavData 2511 rev2 in X-plane 12 missing approaches KLNS VOR08, VOR31, VDM31

Navigation Data General non MSFS data
1

Hi Team, NavData 2511 rev2 in X-plane 12 missing approaches KLNS VOR08, VOR31, VDM31, while they are present IRL,
Please point to to what am i missing or what could be done to have these approaches please, Thank you!

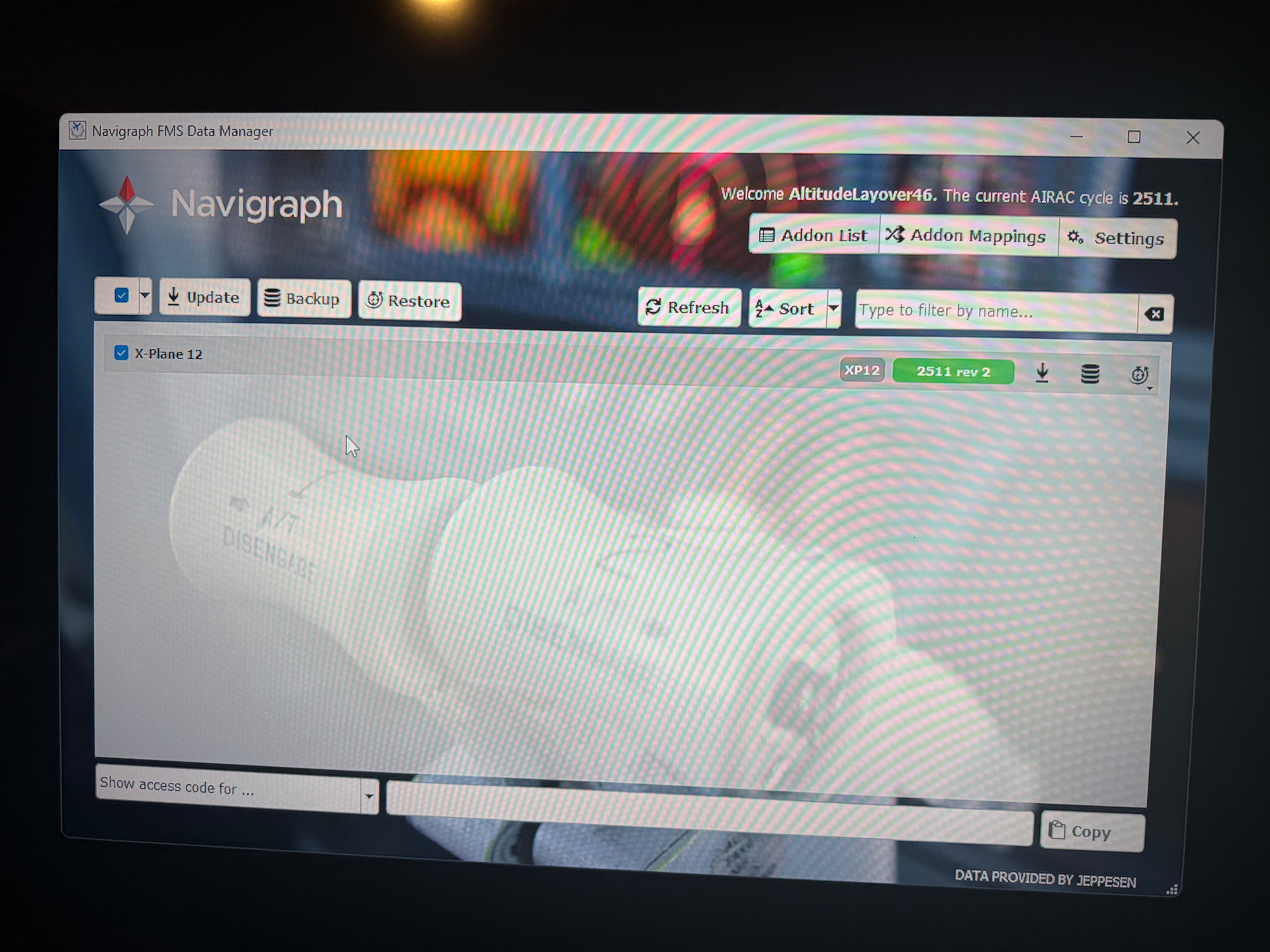

Image (9)
Image (9)1920×2560 726 KB

Image (7)
Image (7)1920×1440 672 KB

Image (8)
Image (8)1920×1440 533 KB

4

Hi,
I have reviewed the approaches, and they are all based on the latest data. I can´t say why you can´t select it, but the data are available in the procedure file:

Here the VOR08/VOR31:

APPCH:010,A,S08,LRP,LRP,K6,D, ,V  A,R,   ,PI, ,LRP,K6,D, ,      ,0000,0000,2250,0100,+,02900,     ,18000, ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,A,S08,LRP,FF08,K6,P,C,EE  , ,   ,CF, ,LRP,K6,D, ,      ,2700,0070,0900,0030,+,02900,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,S,S08, ,FF08,K6,P,C,E  F, ,   ,IF, ,LRP,K6,D, ,      ,2700,0070,    ,    ,+,02900,     ,18000, ,   ,    ,   ,LRP,K6,D, ,A,0, ,S;
APPCH:030,S,S08, ,RW08,K6,P,G,G  M, ,   ,CF, ,LRP,K6,D, ,      ,2812,0005,0900,0065, ,00437,     ,     , ,   ,-358,   , , , , , ,0, ,S;
APPCH:040,S,S08, ,LRP,K6,D, ,V M , ,   ,CF, ,LRP,K6,D, ,      ,0000,0000,0900,0005, ,     ,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:050,S,S08, ,KUPPS,K6,E,A,E   ,L,   ,CF, ,LRP,K6,D, ,      ,3327,0125,3330,0125,+,03000,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:060,S,S08, ,KUPPS,K6,E,A,EE H,L,   ,HM, , , , , ,      ,    ,    ,1530,T010, ,     ,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:010,A,S31,LRP,LRP,K6,D, ,V  A,R,   ,PI, ,LRP,K6,D, ,      ,0000,0000,0940,0100,+,02500,     ,18000, ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,A,S31,LRP,FS31,K6,P,C,EE  , ,   ,CF, ,LRP,K6,D, ,      ,1390,0065,3190,0040,+,02500,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,S,S31, ,FS31,K6,P,C,E  F, ,   ,IF, ,LRP,K6,D, ,      ,1390,0065,    ,    ,+,02500,     ,18000, ,   ,    ,   ,LRP,K6,D, ,B,0, ,S;
APPCH:030,S,S31, ,LRP,K6,D, ,V  M, ,   ,CF, ,LRP,K6,D, ,      ,0000,0000,3190,0065, ,01060,     ,     , ,   , 000,   , , , , , ,0, ,S;
APPCH:040,S,S31, , , , , ,  M , ,   ,CA, , , , , ,      ,    ,    ,3190,    ,+,01060,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:050,S,S31, ,KUPPS,K6,E,A,E   , ,   ,CF, ,LRP,K6,D, ,      ,3327,0125,3330,0115,+,03000,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:060,S,S31, ,KUPPS,K6,E,A,EE H,L,   ,HM, , , , , ,      ,    ,    ,1680,T010, ,     ,     ,     , ,   ,    ,   , , , , , ,0, ,S;

… and here the VORDME31:

APPCH:010,A,D31,LRP,LRP,K6,D, ,V   , ,   ,IF, , , , , ,      ,    ,    ,    ,    , ,     ,     ,18000, ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,A,D31,LRP,HABER,K6,P,C,E   , ,   ,TF, , , , , ,      ,    ,    ,    ,    ,+,02500,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:030,A,D31,LRP,HABER,K6,P,C,EE C,R,   ,HF, , , , , ,      ,    ,    ,3190,0040,+,02500,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:010,D,D31, ,HABER,K6,P,C,E  I, ,   ,IF, ,LRP,K6,D, ,      ,1394,0094,    ,    ,+,02500,     ,18000, ,   ,    ,   , , , , , ,0, ,S;
APPCH:020,D,D31, ,QUALE,K6,P,C,E  F, ,   ,CF, ,LRP,K6,D, ,      ,1394,0034,3190,0060,+,01500,     ,     , ,   ,    ,   ,LRP,K6,D, ,B,0, ,S;
APPCH:030,D,D31, ,ACOCU,K6,P,C,E  M, ,   ,CF, ,LRP,K6,D, ,      ,1395,0006,3190,0029, ,00593,     ,     , ,   ,-300,   , , , , , ,0, ,S;
APPCH:040,D,D31, , , , , ,  M , ,   ,CA, , , , , ,      ,    ,    ,3190,    ,+,00810,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:050,D,D31, ,KUPPS,K6,E,A,E   , ,   ,CF, ,LRP,K6,D, ,      ,3327,0125,3330,0120,+,03000,     ,     , ,   ,    ,   , , , , , ,0, ,S;
APPCH:060,D,D31, ,KUPPS,K6,E,A,EE H,L,   ,HM, , , , , ,      ,    ,    ,1530,T010, ,     ,     ,     , ,   ,    ,   , , , , , ,0, ,S;

It appears to be more of an XP12 issue somewhere. Please report this to X-Plane. The data are there - AIRAC 2511 rev. 3 installed.

Thank you very much,
Richard
