Hello Im new to navigrapgh, I cant seem to get the jeppesen low enroute chart to display the MEA’s MOCA’s GPS MEA’s. The Chart seems to be more simplified, cleaner version.
Am I missing something?
Hello! Welcome to our forum!
Our map is data-driven, meaning that it dynamically displays content depending on the context (zoom, other labels etc.). Please try zooming in a bit!

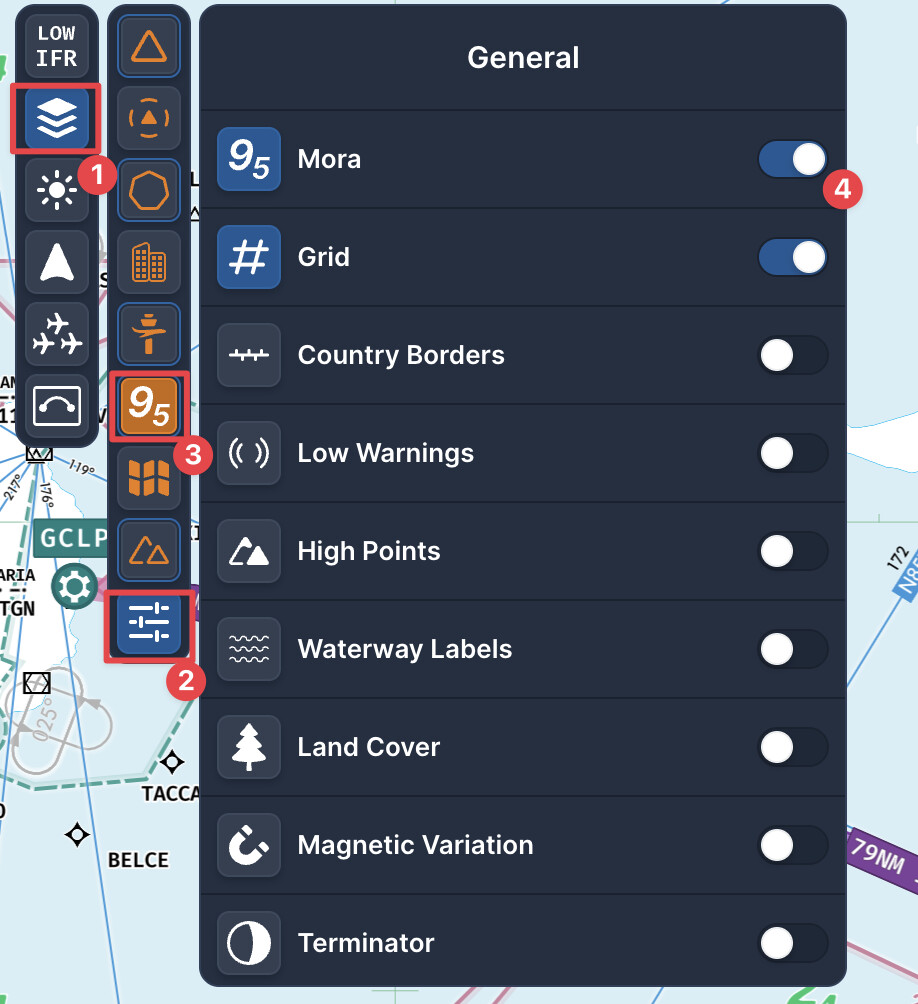

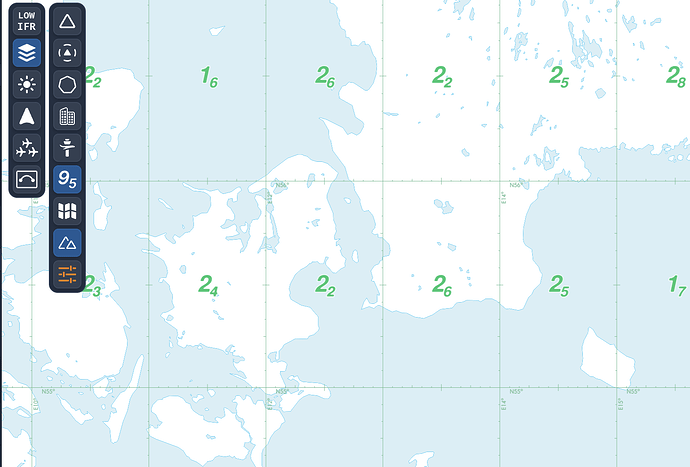

Also, make sure that Mora is enabled in the layer settings:
Another option is to temporarily disable other layers:
Kind Regards,
Malte
Hello, I see MEA and MORA.
I don’t see any MOCA’s and the distance labels are different and the MEAS are red vs black . There is a lot of info missing, even zooming in. Lots of color differences. I jusy assume they would to be an exact match .
Please see my two pictures .

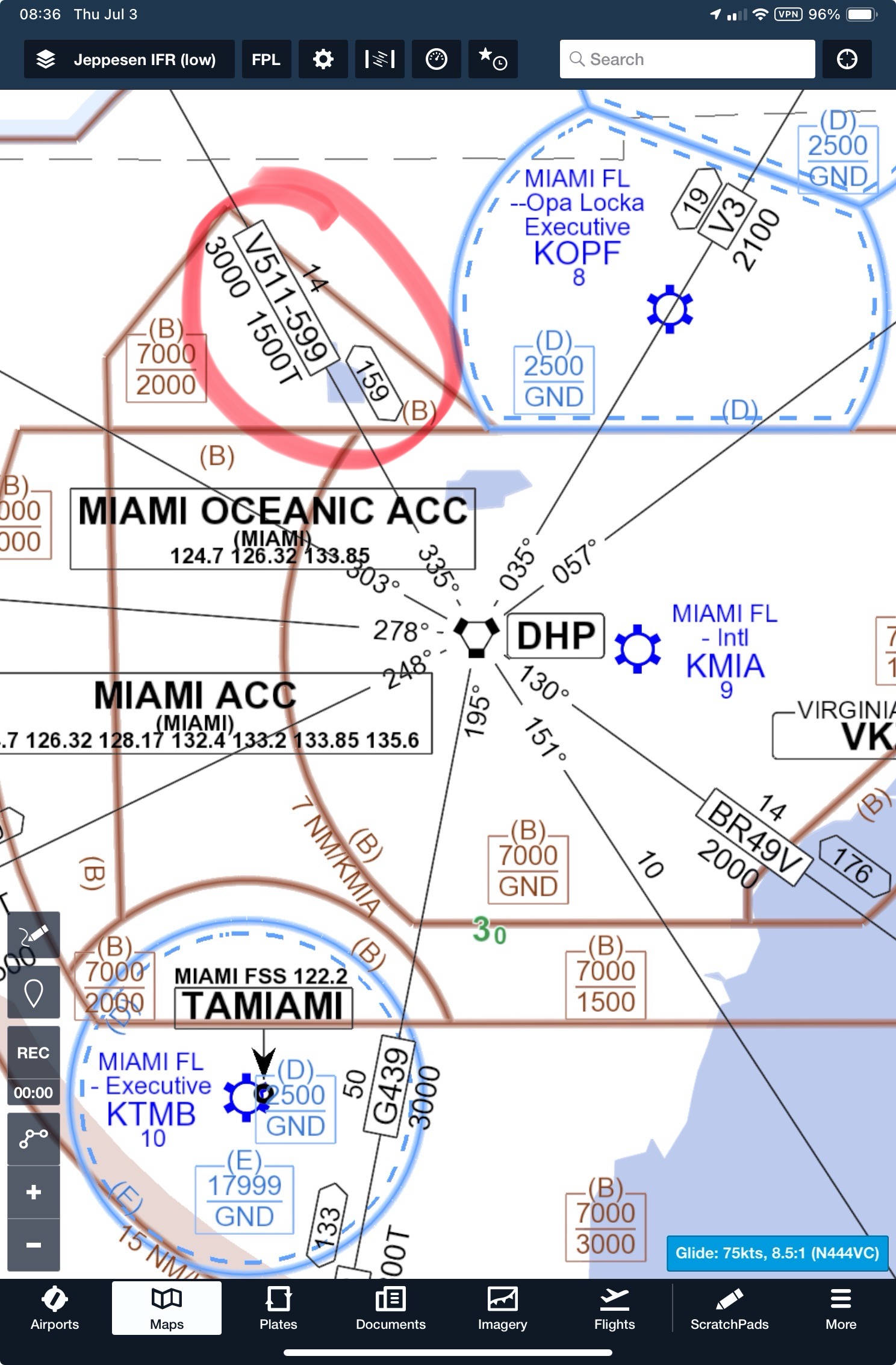

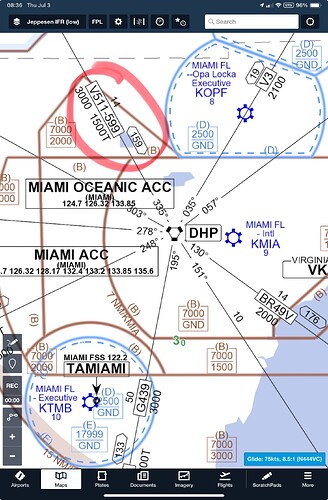

First one is a jeppesen chart on foreflight .

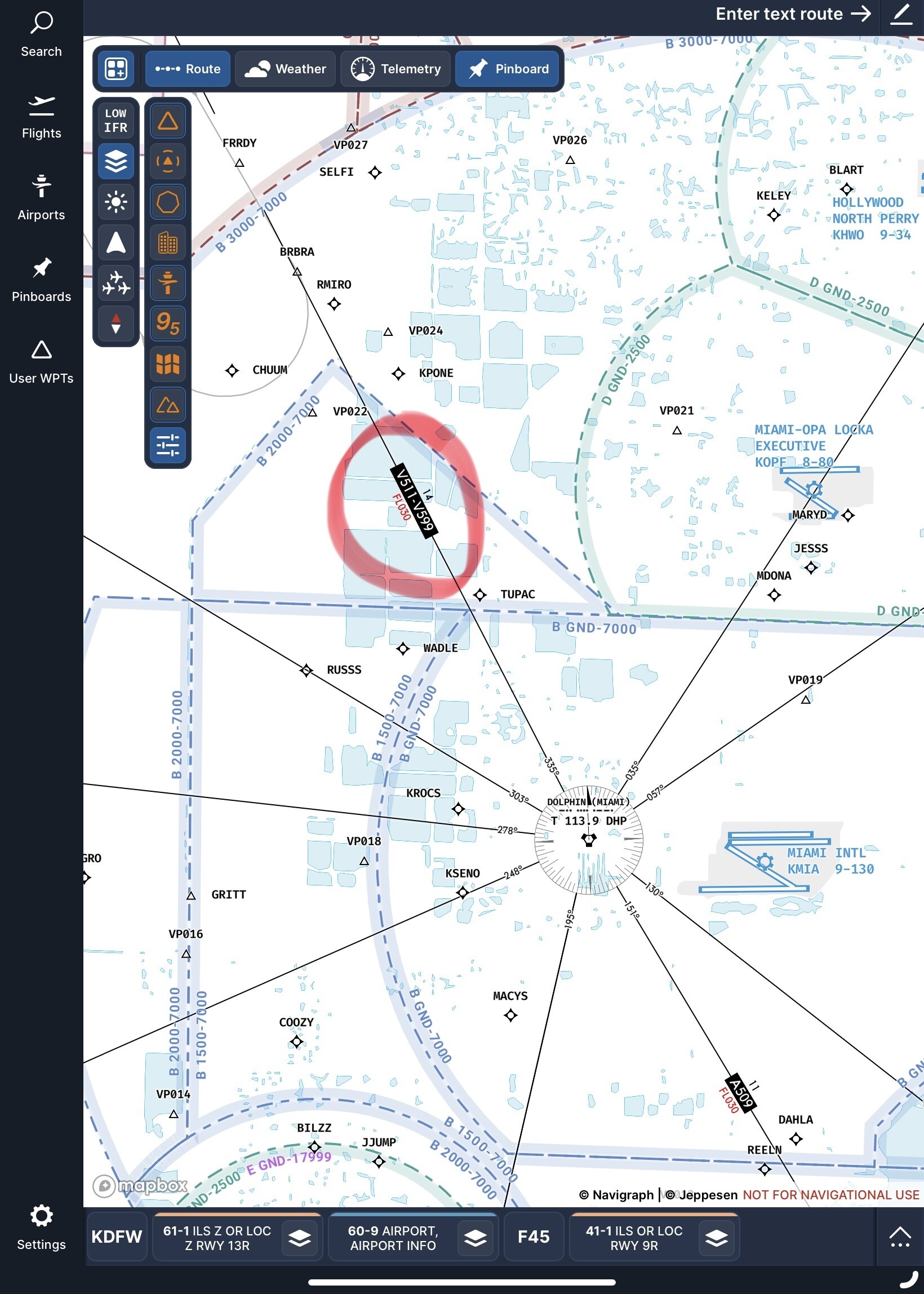

2nd one Navigraph :
Thank You
Robert S. Morgan Jr
Capt. Morgan
336-408-9538
The enroute map shown in the Navigraph Charts application is not the Jeppesen IFR map. It is based on Jeppesen data, and the symbology is very similar to the extent possible, given that we are working with a dynamic data-driven map instead of a raster. Colors may also differ; we pick our own palette but try to stay true to the Jeppesen version in general.
I see that MOCA is missing. I will ask internally why this is.
I will also ask why the distance label is different. There is probably a good reason, but I’d also like to know why!
Feel free to elaborate!
Actually, can you elaborate on this one too? What is different about the distance? In your screenshots, they seem to align.
I was trying to use the charts to study for an airline interview. That’s when I noticed the big differences in the enroute chart . The distances are the same it’s just the format of the box shapes that surround the distance information.
I’m thankful for the other charts being almost an exact replica .
Thank You
Robert S. Morgan Jr
Capt. Morgan
336-408-9538
Interesting! I learned something new as well
See this document: Introduction to Jeppesen Charts
Specifically, page 51 (ENROUTE-6).
You are comparing two different pieces of symbology: Segment mileage vs. Total mileage.
As far as I know, we currently don’t have the total value displayed in the map.
